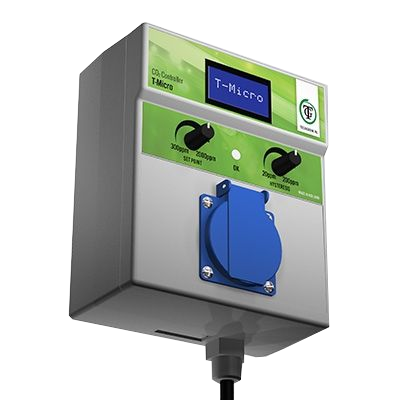

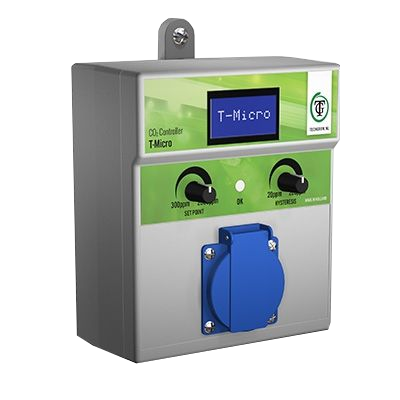

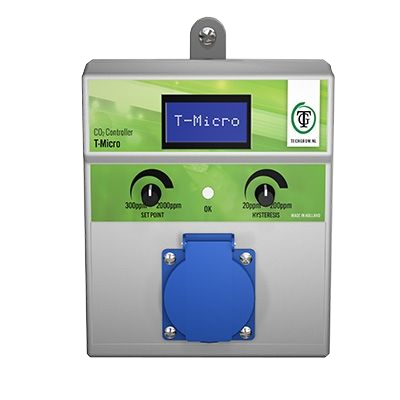

TechGrow T-Micro CO2 Controller / Regulator / Meter
To measure is to know, to control is better
With the TechGrow T-Micro CO2 Controller you have a CO2 controller that is Techgrow's smallest CO2 controller. Thanks to the complete digital technology in this controller, this simple variant is by far the best in its category. The T-Micro CO2 Controller can be used in any space, due to the external CO2 sensors with light sensor that are available separately, this device automatically switches between day and night settings.
The T-Micro CO2 Controller by TechGrow is adjustable from 300 to 2000 ppm and takes a measurement every second. You can read the current values, including setpoint and hysteresis, on the display of this device. The controller switches the CO2 source on and off automatically, and the indicator LED shows you when CO2 is being dosed. The T-Micro CO2 Controller has a built-in calibration function, with which you can calibrate the CO2 sensor in the open air.
The TechGrow controllers are supplied without the sensor.
Properties
- Plug & Play.
- Can be used in small to very large spaces.
- Built-in calibration function to calibrate the CO2 sensor in the outside air.
- Adjustable from 300 - 2000 ppm.
- Min/max display for CO2.
- Indicator LED indicates when CO2 is being metered.
- Switches the CO2 source (CO2 generator, CO2 cylinder) ON/OFF by means of a 230 V relay.
- Memory in case of power failure for setpoint and hysteresis.
- Automatic 110V/230V detection.
- External sensor includes a light sensor that automatically switches between day and night settings.
- Automatic detection of cable break or poor contact with connected sensors.
- Connection of the sensor with standard network cable (UTP). Included is a 5-meter cable.
- Controller and sensor are available separately.
- Various sensors are available separately.
- Possibility to connect the TechGrow Datalogger (DL-1).
- Compatible with: S-2 Sensor | S-Eco Sensor | S-4 Sensor.
Specifications
- Controls: CO2
- Measures/displays: CO2
- PPM range: 300-2000 ppm
- Day/Night Detection: Yes
- Light sensor: In CO2 sensor
- Display characters: 2 x 8
- Power input: 100/240 volts 50/60 HZ
- CO2 output power: 100 - 220 volts
- Internal consumption: 3 Watt
- CO2 Relay: 8 Amp
- CO2 Fuse: 4 Amp
- Mains cable: 3 x 0.75
- Cable length: 1.7 m
- Relay switching capacity: 8 Amp
- Relay Power: AC 5A
