Description
To measure is to know, to control is better

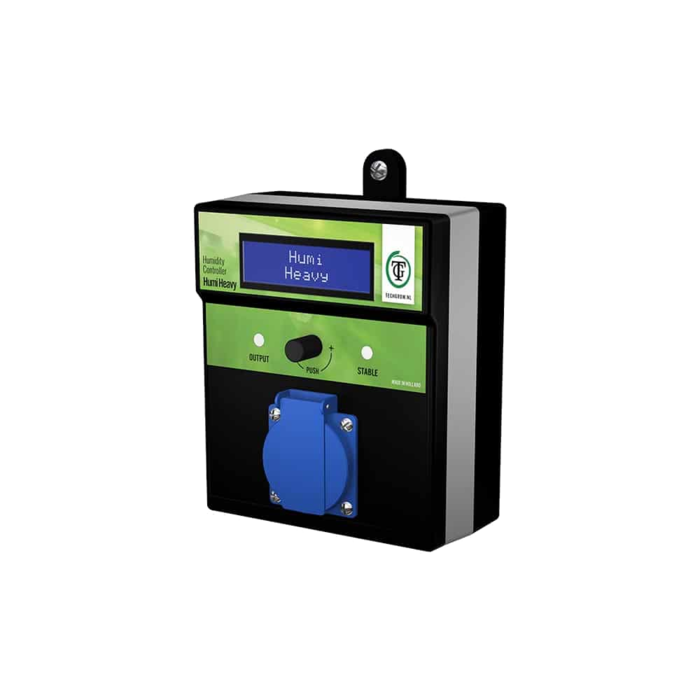

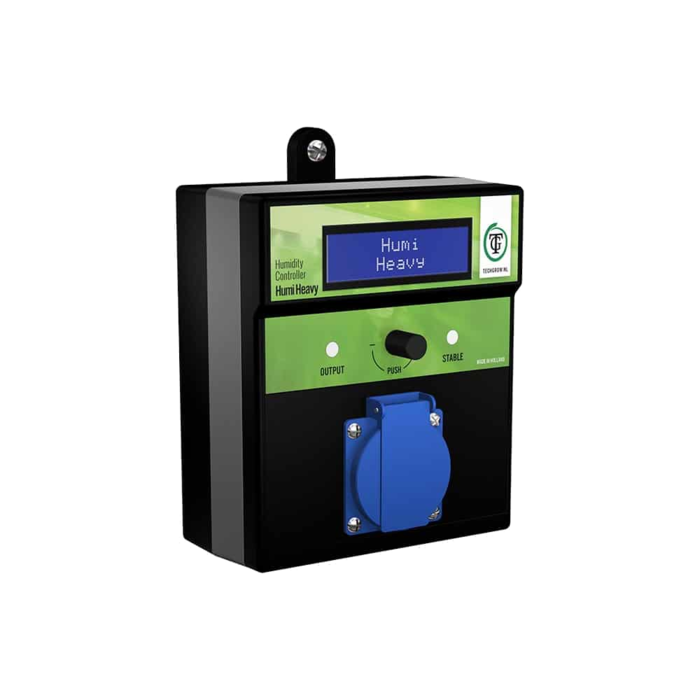

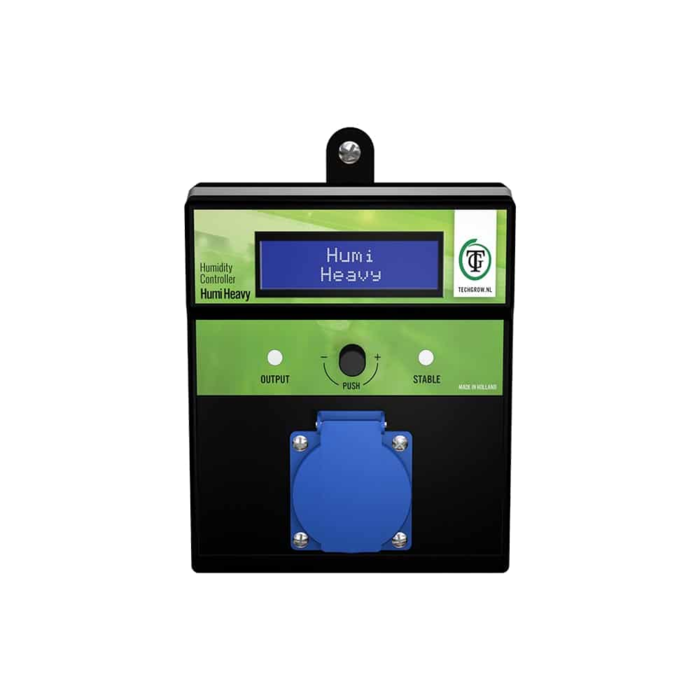

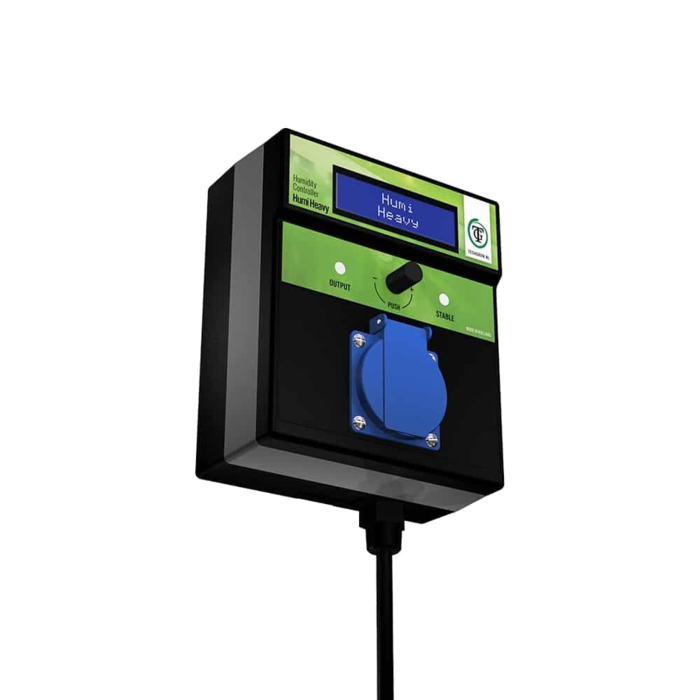

With the TechGrow Humi Heavy you have a controller with which you can operate a powerful dehumidifier or humidifier. This controller has been developed with extra heavy components so it can switch devices up to 10 Amps. The TechGrow Humi Heavy is easy to install and easy to set; you can set it from 10% to 90% relative humidity. On the clear LCD screen you can easily read the minimum/maximum values, the humidity value and the temperature and set these easily. In addition, this controller has a memory for setpoint and hysteresis in case of power failure. You can also see when the Humi Heavy is active by the indicator LEDs.
Properties
- Adjustable from 10% to 90% relative humidity.
- Switches the humidifier and/or dehumidifier on/off by means of a 230V relay.
- Memory for setpoint and hysteresis in case of power failure.
- Indicator LED indicates when the Humi Heavy is active.
- Automatic detection of cable break or bad contact with the connected sensors.
- LCD display.
- Sensor connection with standard (UTP) network cable.
- Sensor not included; various sensors are available separately.
- Possibility to connect the TechGrow Datalogger (DL-1).
- Sensor advice: Temp/RH
- Compatible Sensors: Temp/RH | S-2 | S-4.
Specifications
- Controles: Humidity
- Measurement/Tone: Humidity & Temperature
- Humidity range: 10-90%
- Display characters: 2 x 16
- Relay switching capacity: 10 Amp
- Relay nominal: AC 5A
- Input: 100/240 volts 50/60HZ
- Output power: 100 - 220 volts
- Internal consumption: 3 Watt
- Relay humidity: 10 Amp
- Humidity fuse: 10 Amp
- Power cord: 3 x 0.75mm / 1.7m
