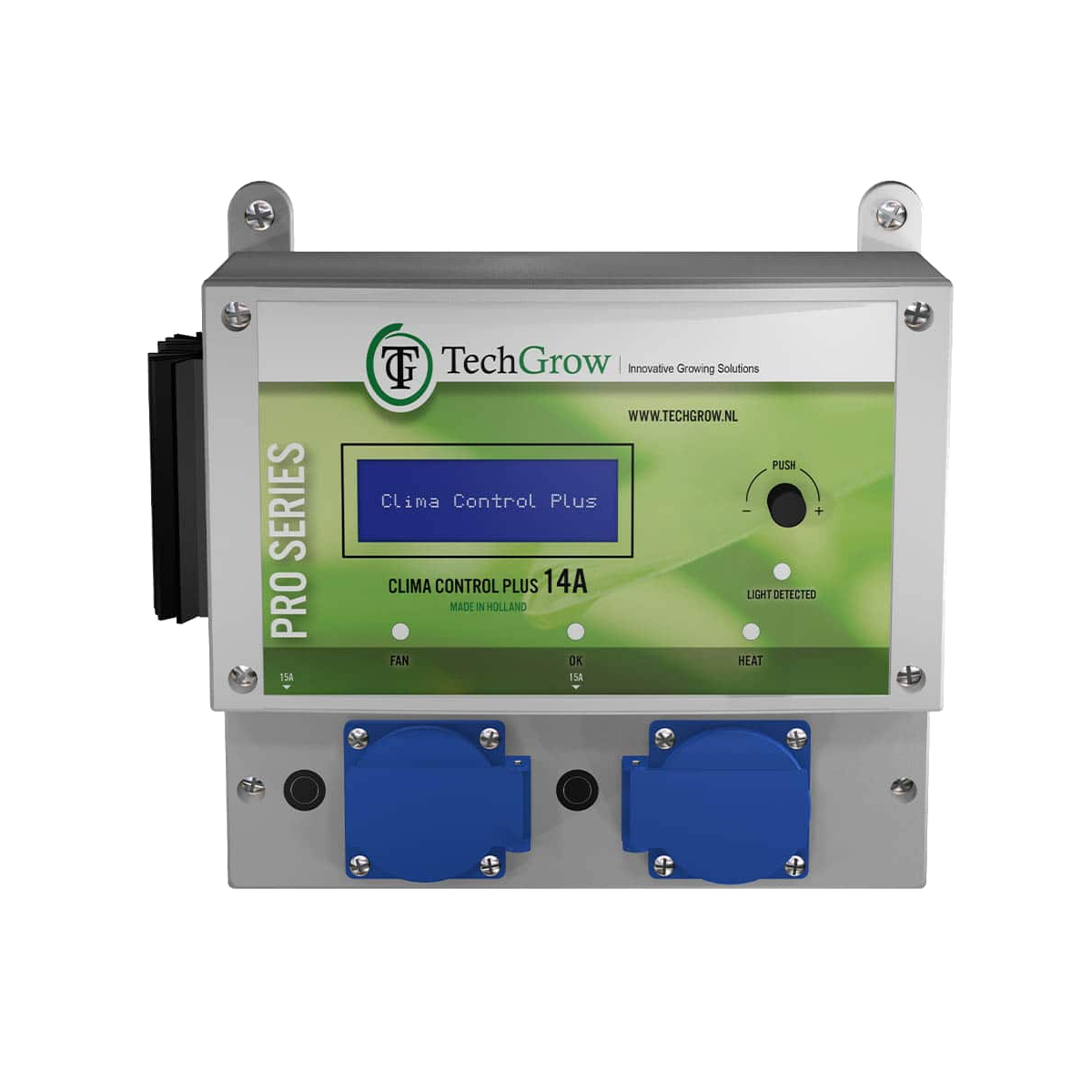

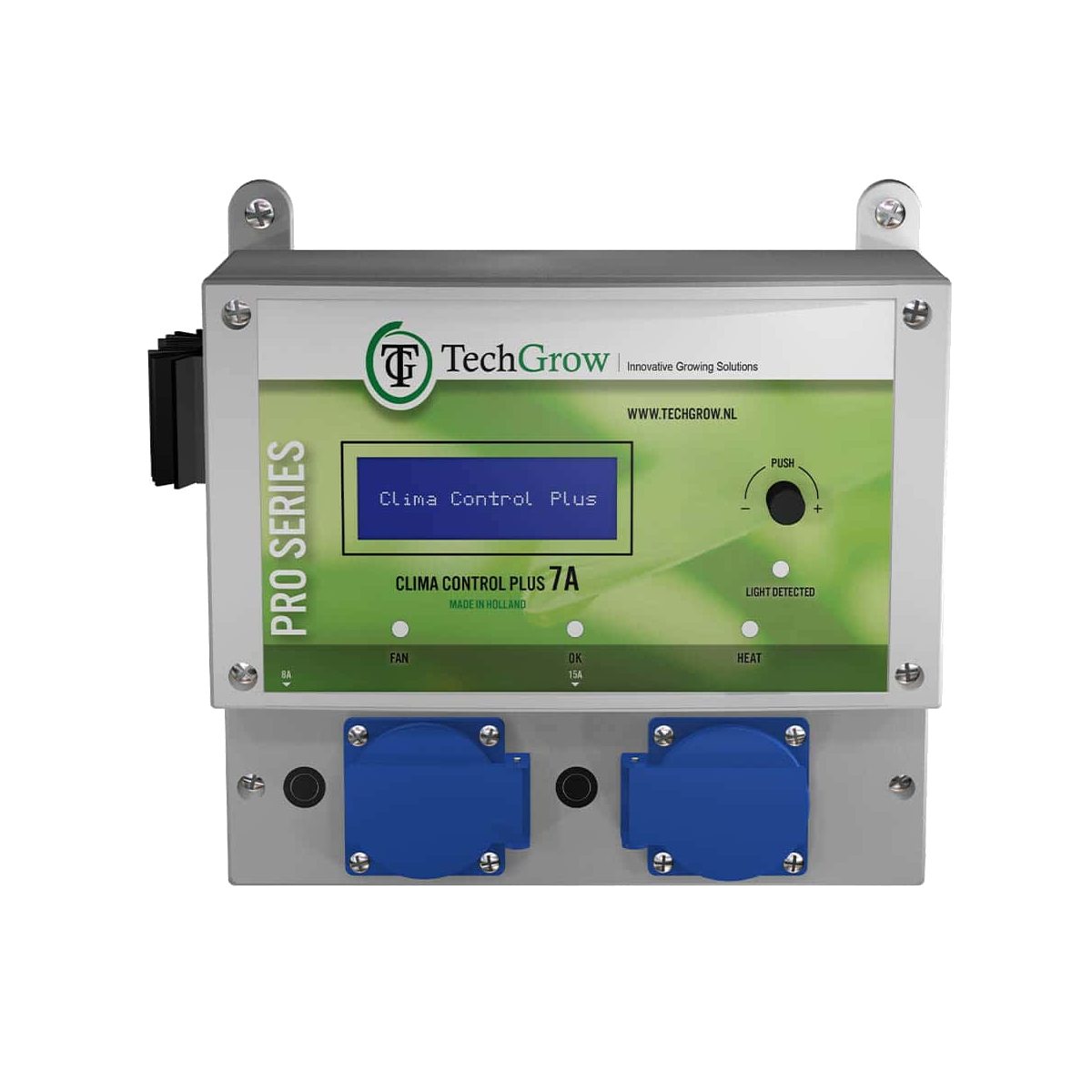

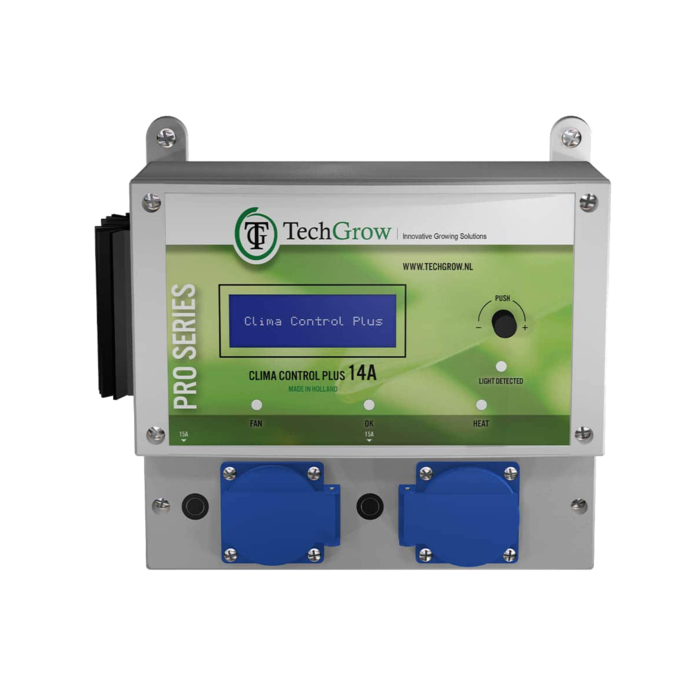

TechGrow Clima Control Plus 7A / 14A ~ Climate Controller
To measure is to know, to control is better
The TechGrow Clima Control Plus provides you with a digitally controlled climate controller that accurately regulates the climate in your room. The digital display shows the actual values at a glance and the device is very easy to operate via the clear menu.
The modern software in this controller can regulate the temperature and humidity in your room, where the day and night values are separately adjustable, also you can set a delay time for switching between day and night mode. Depending on the connected sensor, TechGrow Clima Control Plus can measure the values and register the min/max values of CO2, temperature and humidity.
In addition to the connection for the fan, this controller also has a connection for a heater, which is ideal when using LED lighting that requires less heat. The smart temperature alarm function ensures that your space does not become too warm and that the TechGrow Clima Control Plus switches off an external contact in an overheated situation.
The TechGrow Clima Control Plus has one connection for a heater and one connection for a ventilator (extractor) and is available in two versions, namely a 7 Amp and a 14 Amp. This climate controller is supplied without a sensor, various compatible sensors are available separately.
Properties
- Connection for heating (14 A).
- Day and night temperature can be set separately.
- Air humidity value adjustable separately for day and night.
- Switching off of external contact by adjustable temperature alarm.
- Delay time for switching between day and night mode.
- Indication LEDs for light detection, fan, temperature and stable climate.
- Ideal as additional heating when using LED lighting.
- All settings are retained in the event of a power failure.
- Displays minimum/maximum values of connected sensors (CO2, temperature and humidity).
- Regulates the temperature and relative humidity depending on the connected sensor(s).
- The fan can be controlled automatically or manually.
- The fan control is adjustable in steps of 2%.
- Smart setting option where you set the fan in 2 simple steps.
- Unique menu for the adjustment of each box, independent of the size.
- Adjustable speed of adjustment.
- Available in 7 A and 14 A versions.
- Possibility to connect to various TechGrow devices.
- Supplied without sensor; various sensors are available separately.
- Possibility to connect the TechGrow Datalogger (DL-1).
Specifications
- Controls: Temperature/humidity
- Displays: Temperature/humidity & CO2
- Day/night detection: Yes
- Light sensor: In sensor
- Heating relay: Yes
- Temperature alarm: Yes
- Temp range: 10.0 to 45.0 C.
- Temp hysteresis: 0.0 to 5.0 C.
- RH range: 10 - 100%
- RH hysteresis: 0-30%
- Temperature settings: Day & night
- Humidity settings: Day & night
- Day/night delay: Yes
- Min/max values: Yes (Temp & RH)
- Power supply: 100v - 240v
- Internal consumption: 3 watts
- Fuse: 8 amp / 15 amp
- Triac: 12 amp / 24 Amp
- Power cord: 3 x 1.5mm / 1.7m
