Description
To measure is to know, to control is better

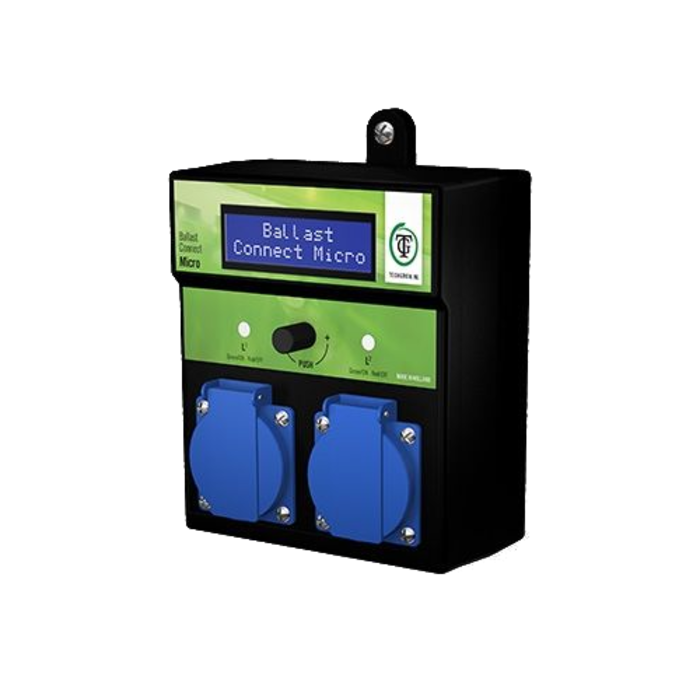

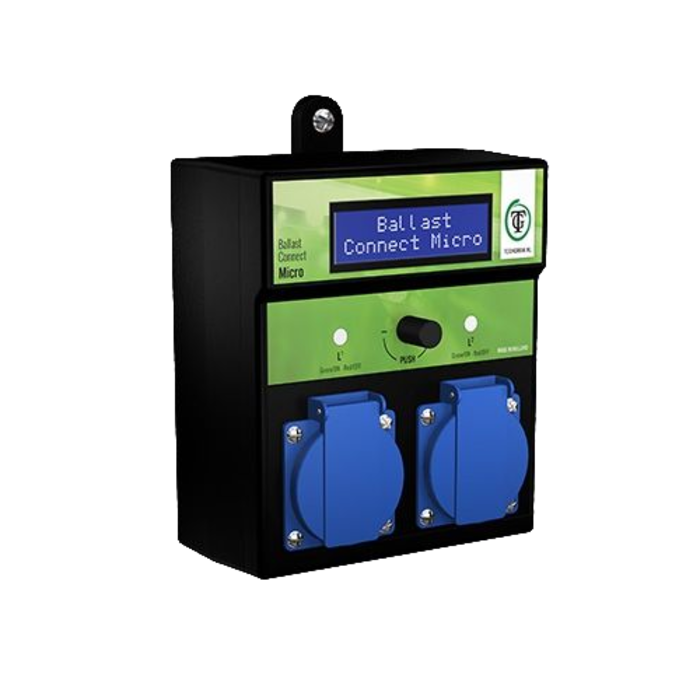

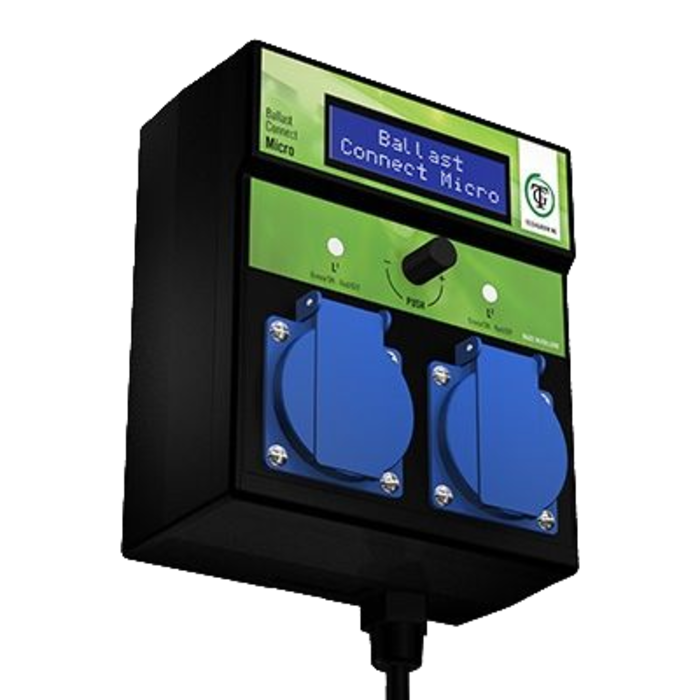

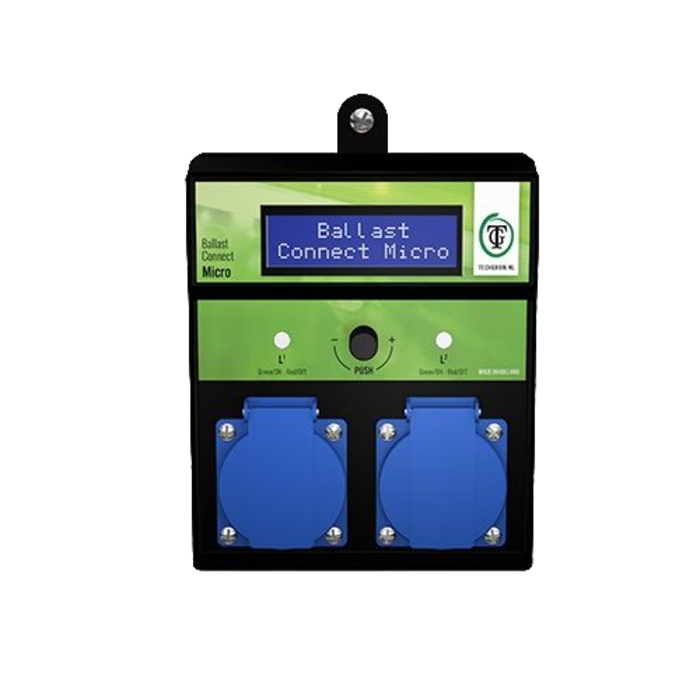

With the TechGrow Ballast Connect Micro you have a digital relay controller that can switch 2x600W. Each socket of this digital relay controller is switched individually by means of hybrid relays. This controller offers many advantages, this is due to the digital control and the 2 relays. The Ballast Connect Micro has a temperature protection and the relays switch on every 5 seconds during the switching moment.
Properties
- Suitable for 2 x 600 W
- Makes no switching noise
- The lamps are switched individually
- Choice of 2 digital clocks (24-hour/asymmetrical)
- Adjustable temperature protection
- In case of overheating, one lamp is switched off
- Adjustable switch-on delay up to 300 minutes
- All settings will be saved in case of power failure
- Display for minimum/maximum temperature
- Various Temp Probes are available separately (not included)
Specifications
- Controls: Lightning
- Measurement/Display: Switching times & temperature
- Display characters: 2 x 16
- Temperature protection: Yes
- Individual relay switching: Yes
- Battery: Built-in
- Switching sound: Quiet - No noise
- Timers: 2 digital clocks 24H & Asynchronous
- Event Logs: No
- Power failure protection: 0 - 300min
- Date & time settings: dd-mmm-yyyy hh:mm
- Input: 110 - 220v
- Output power: 100 - 220 volts
- Internal consumption: 3 Watt
- Fuse: 1 x 10 Amp (slow blow)
- Power cord: 3 x 1,5mm
- Sockets: 2 x 600W
- Number of relays: 2
- Switching capacity relays: 8 Amp
- Relay power: AC-5a
