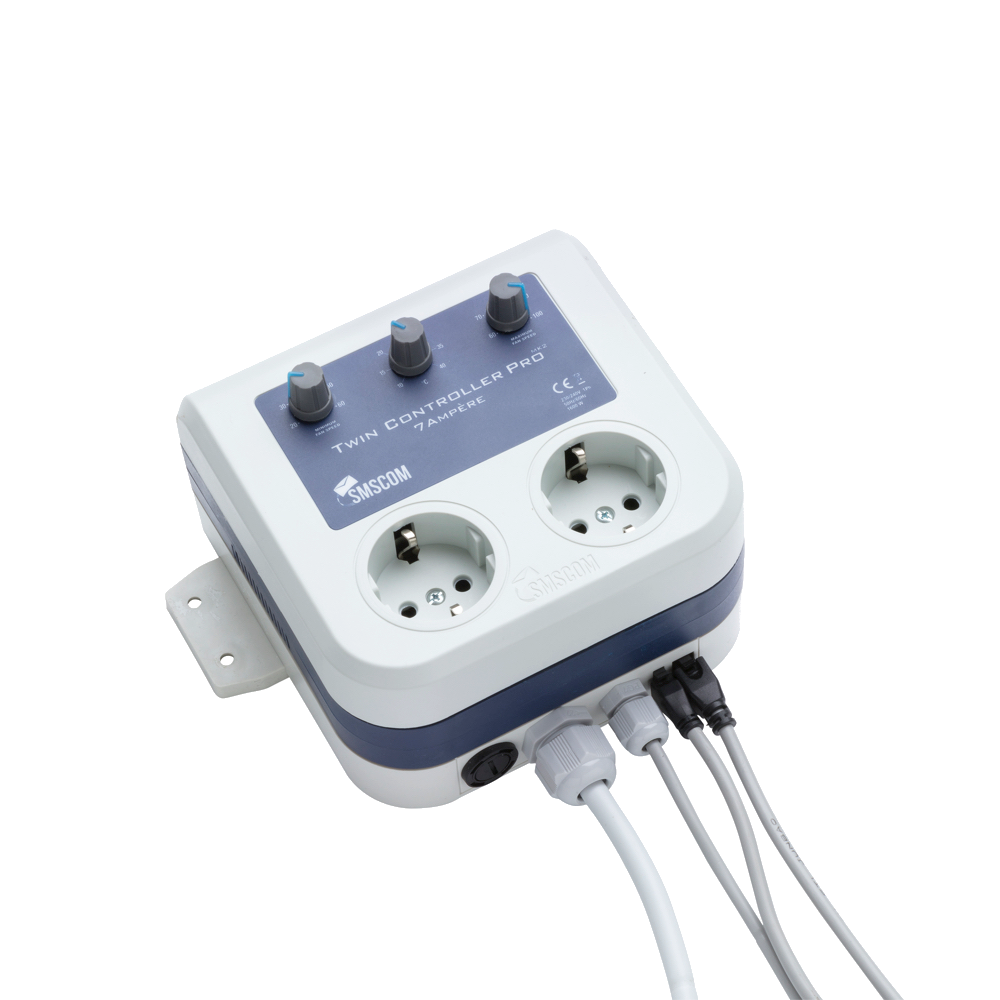

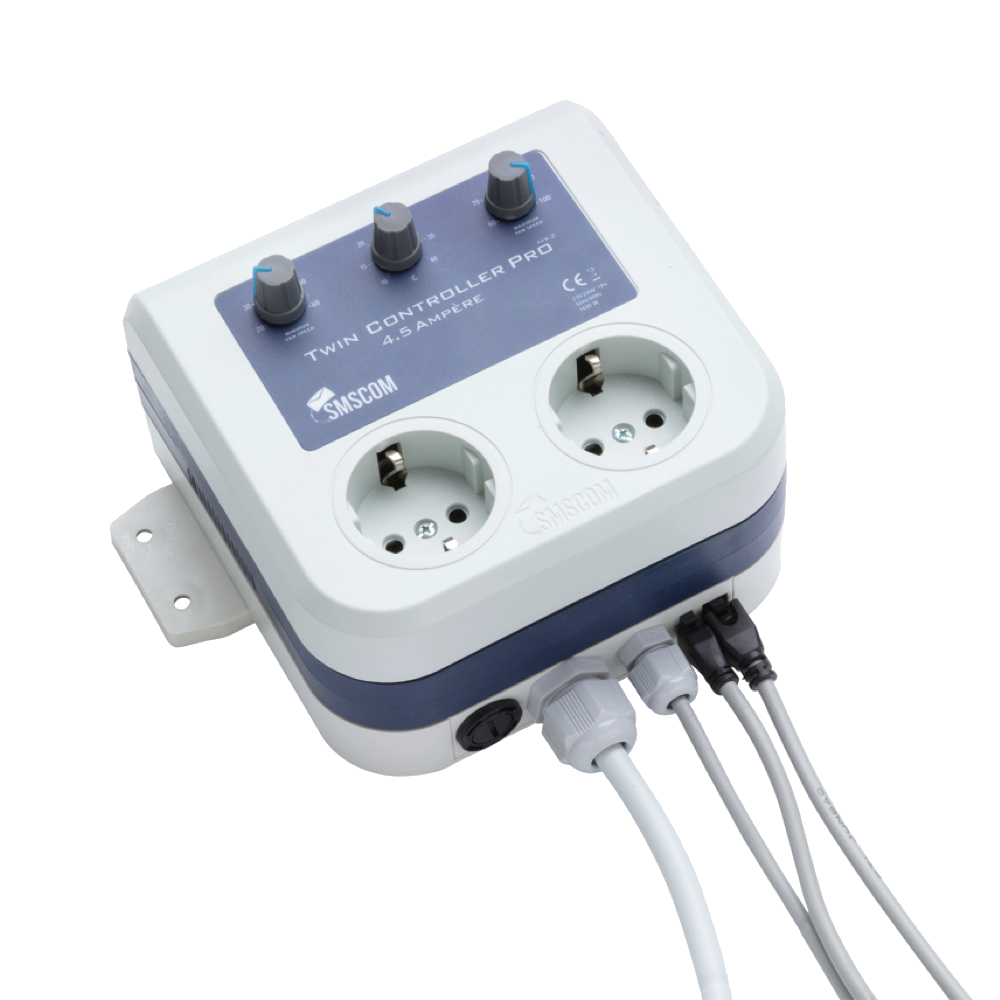

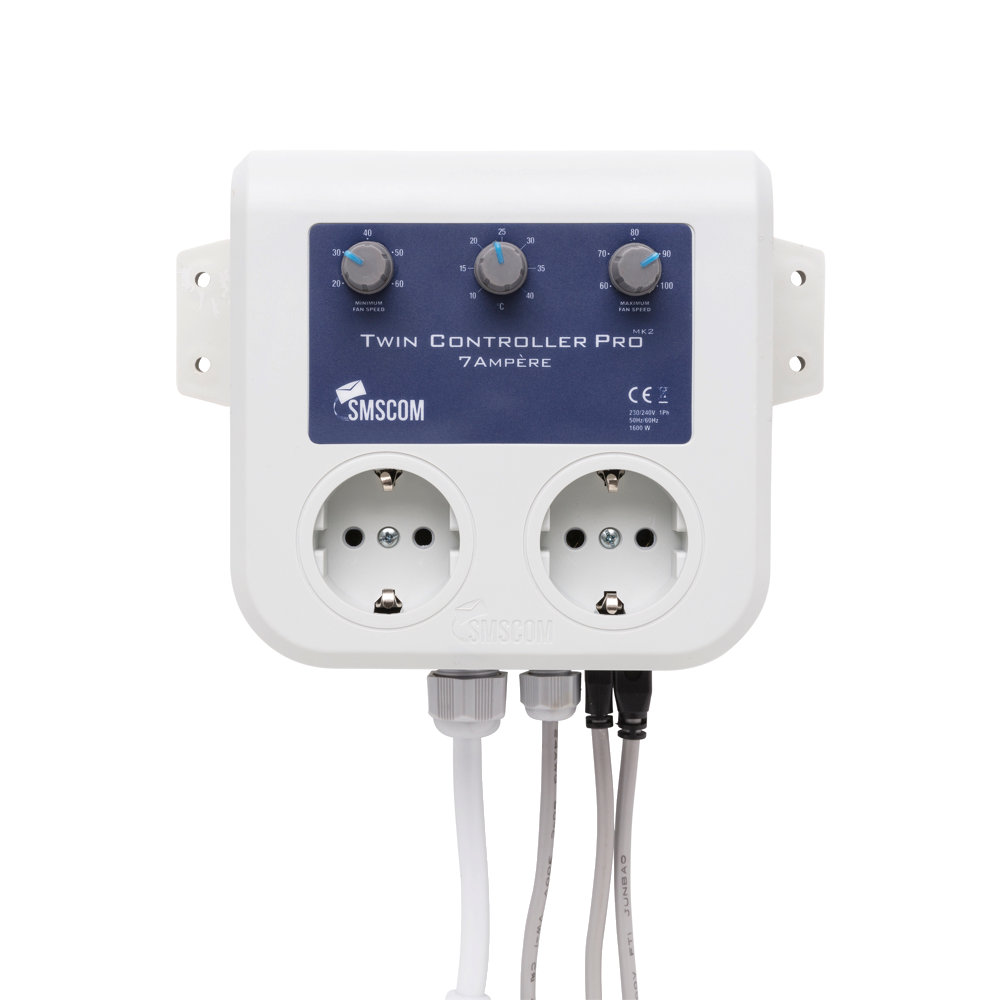

SMSCOM Twincontroller Pro MK2 ~ 4.5A | 7A ~ Ventilation Controller
SMSCOM Twincontroller Pro Mk2
With the SMSCOM Twincontroller Pro Mk2 you have a software controlled controller with Motion Flow. This software ensures that the motors run at a fixed speed around the set temperature, no more peaks and troughs. Because the motors run more constantly you get a more even temperature course and simultaneously a quieter operation of your boxes. This controller is easy to set up using the three dials, with these dials you can set the desired temperature, minimum speed and maximum speed.
Pro Version
With the SMSCOM Twincontroller Pro Mk2 you have the option, next to the advanced software, to connect a light sensor. The combination of the controller with the light sensor makes it possible to control the humidity at night. This light sensor is separately available. You can also use the Pro Controller to operate multiple Slaves, so that you do not have to buy the controller with the largest capacity right away but can expand it later.
The Pro-function of the Twincontroller in combination with the light sensor means that the controller knows when it is night and takes into account a humid air. During this program the suction is activated every hour without influencing the temperature, this prevents an accumulation of moist air and the development of mould. You can see that the night program is active by the blinking LED 'Humidity'. As soon as it is light, the PRO function is switched off. From that moment on, the controller regulates the suction again in the normal way. The night program is important because condensation mainly occurs at night due to a lower temperature compared to during the day.
Specifications
- Electronic, precise climate control
- Simple operation by means of 3 rotary knobs
- Maximum load up to 4.5A 1000W / 7A 1600W
- 5 meter NTC temperature sensor included
- Spare fuse included
- Possibility to connect a light sensor
- Software controlled
Using SMSCOM Twincontroller Pro Mk2
- Connect your fans correctly to the blue sockets (small fan = IN/large fan = OUT)
- Set the desired MINIMUM fan speed with button 1 (e.g. 30%)
- Set the desired temperature with button 2 (e.g. 25°C)
- Set the desired MAXIMUM fan speed with button 3 (e.g. 95%)
- Place the temperature sensor in your room. Note, not in direct air flow or directly under a light source
- Place the light sensor in your room, directed at the light source, do not remove the cap yet!
- Now connect the TwinController PRO to the mains.
