S-Vent Tube fan - TT
S-Vent Tube Fan TT
The plastic S-Vent tube extractor TT is available in a model suitable for every grower. The convenience of a TT tube fan is expressed by the removable fan.
Air
The S-vent tubular fan TT line is suitable for air ventilation, air displacement and - or air renewal in your hobby grow or room.
Because of its compact size, this plastic tube extractor is ideal for spaces where you have little height. This tube extractor is made of plastic and is easy to connect.
- Mixed flow fans.
- Suitable for the supply and extraction of air.
- In- line mixed flow fans in plastic housing.
Timer or Thermostat and controller
The product line of the S-Vent tube extractor TT has extended models with Timer or Thermostat and controller.
Timer
The timer can be set to let the tube fan suck a little more and has an adjustable running time of 2 to 30 minutes.

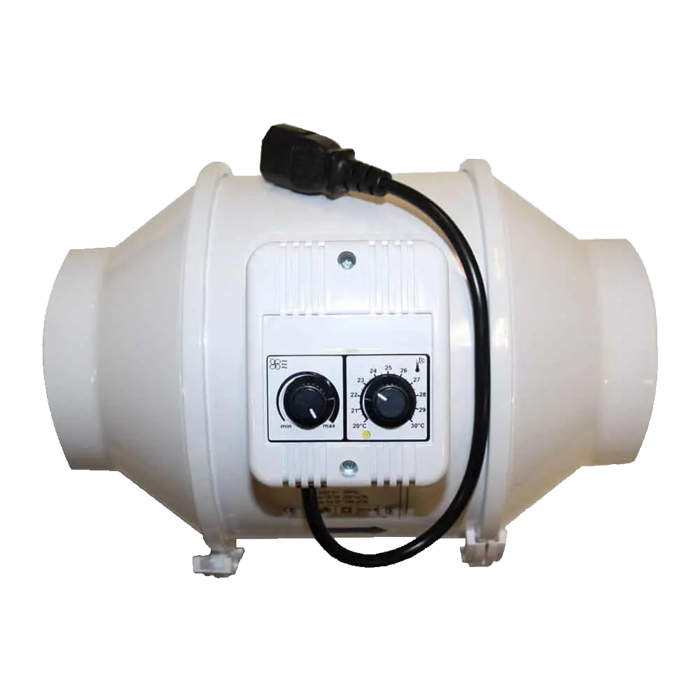

Thermostat and controller
With the controller the speed can be controlled and with the thermostat the temperature can be set.
Note: Connecting cables must be ordered separately.
- Brand: S-Vent
- Article number: SVTT100
- Volt: 230
- Air temperature: max 60℃
- Speeds: 2 via external circuit
- --- TT100 ---: --- TT100 ---
- Capacity: 145 / 187 m³/hour
- L x W x H: 246 x 167 x 190mm
- Watt: 24 / 37
- Amp: 0,12 / 0,20
- dB(A): 27 / 34 at 3 meter distance
- --- TT125 ---: --- TT125 ---
- Capacity: 220 / 280 m³/hour
- L x W x H: 246 x 167 x 190mm
- Watt: 28 / 38
- Amp: 0,19 / 0,26
- dB(A): 33 / 39 at 3 meter distance
- --- TT125S ---: --- TT125S ---
- Capacity: 285 / 345 m³/hour
- L x W x H: 246 x 167 x 190mm
- Watt: 74 / 106
- Amp: 0,10 / 0,16
- dB(A): 32 / 43 at 3 meter distance
- --- TT150 ---: --- TT150 ---
- Capacity: 467 / 552 m³/hour
- L x W x H: 295 x 223 x 250mm
- Watt: 92 / 124
- Amp: 0,17 / 0,27
- dB(A): 39 / 46 at 3 meter distance
- --- TT160 ---: --- TT160 ---
- Capacity: 467 / 552 m³/hour
- L x W x H: 295 x 239 x 261mm
- Watt: 92 / 124
- Amp: 0,17 / 0,27
- dB(A): 39 / 46 at 3 meter distance
- --- TT200 ---: --- TT200 ---
- Capacity: 830 / 1040 m³/hour
- L x W x H: 295,5 x 239 x 261mm
- Watt: 125 / 90
- Amp: 0,40 / 0,55
- dB(A): 52 / 45 at 3 meter distance
- --- TT250 ---: --- TT250 ---
- Capacity: 1110 / 1400 m³/hour
- L x W x H: 383 x 287 x 323mm
- Watt: 125 / 177
- Amp: 0,54 / 0,79
- dB(A): 55 / 47 at 3 meter distance
- --- TT315 ---: --- TT315 ---
- Capacity: 1760 / 2350 m³/hour
- L x W x H: 445 x 362 x 408mm
- Watt: 225 / 330
- Amp: 0,98 / 1,43
- dB(A): 58 / 49 at 3 meter distance
