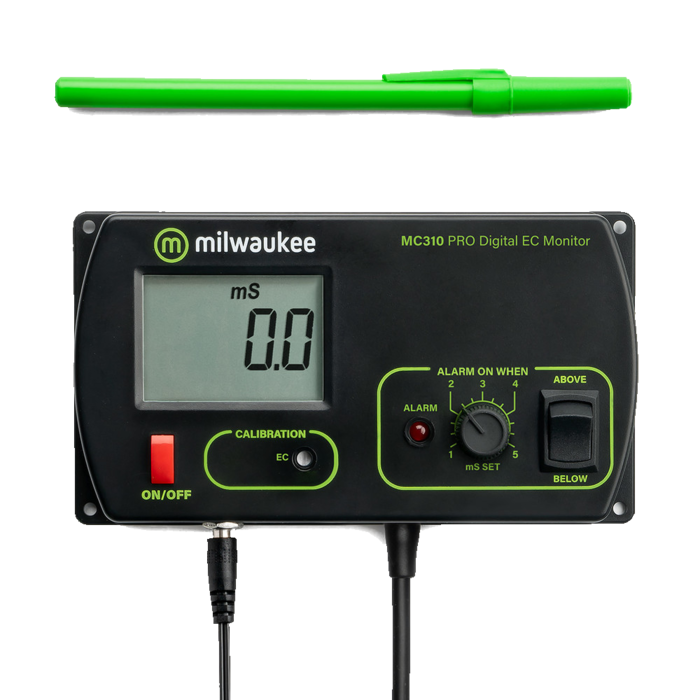

Milwaukee MC310 PRO - Geleidbaarheid Monitor (EC)
ACCURATE. SIMPLE. RELIABLE. 24/7 CONDUCTIVITY (EC) MONITORING.
The Milwaukee MC310 is designed to continuously measure EC levels in your tank, just set your EC parameters and let the Milwaukee EC monitor do the rest. The MC310 lets you measure EC levels automatically and warns with an alarm when they go outside the set range.

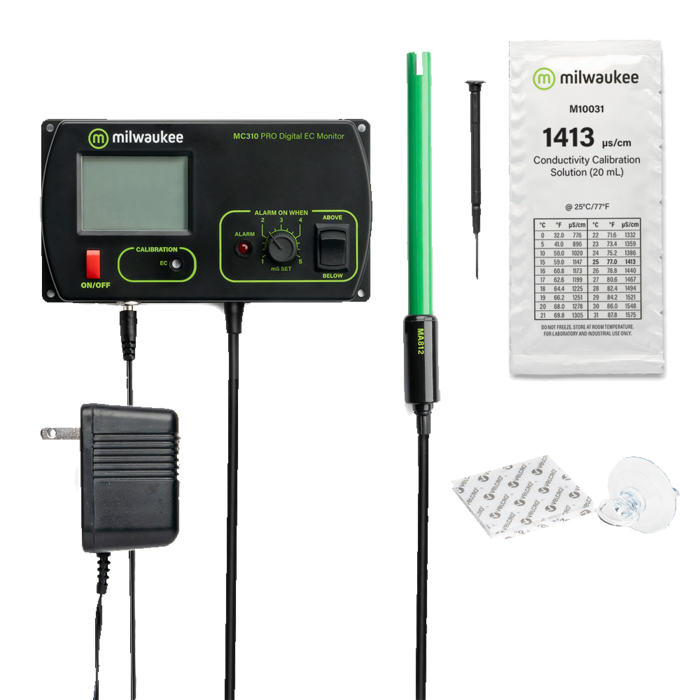

All of these instruments run on a 12V adapter so you don't have to worry about broken batteries anymore. Each unit comes with mounting kit, probe, probe holder and starting amount of calibration fluid.
DESIGN FEATURES
- Quick and easy to read current results with large digital LCD readout and visual LED alarm.
- Accurate to ±2% full scale (0.0 to 10.0 mS/cm) with user selectable high/low set points.
- Simple one-point calibration for greater accuracy with manual trimmers for easy adjustment.

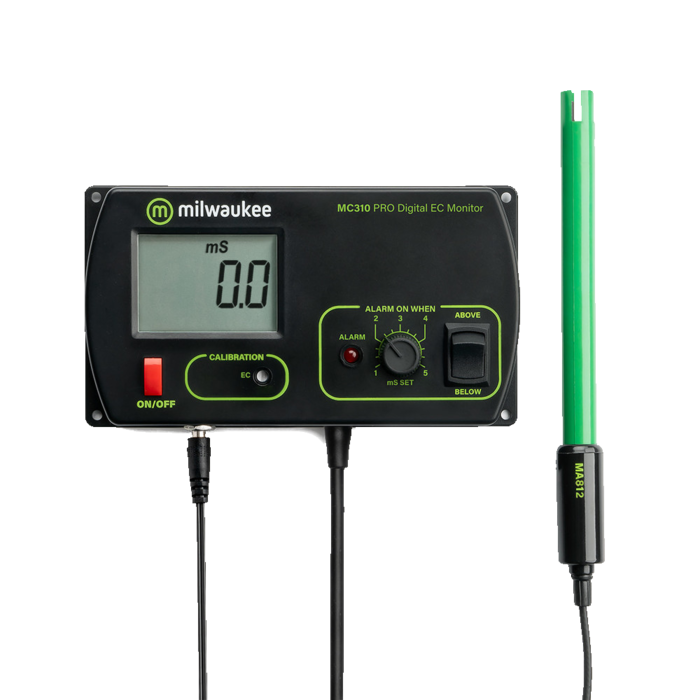

- Includes MA812/2 hardwired EC probe.
- 2 meter probe cables for added flexibility in testing.
- 12 VDC power supply.
- Easy to use, simple to set up.
USE AND MAINTENANCE
EC sensors are more robust, but can still be affected by residue buildup.
EC electrodes may start to release nutrients over time. Rinse the probe with fresh tap water after each use to prevent build-up.
CONVERTING EC TO TDS
The Milwaukee EC monitor, like all conductivity meters, provides a measurement of electrically charged ions in a solution and is an absolute measurement of conductivity.
EC is often converted to TDS in parts per million (ppm). There are several scales, such as the 500 scale, the 650 scale, and the 700 scale. However, the true PPM can only be determined by chemical analysis.
Your mS/cm reading can be converted to TDS (ppm) by approximation:
2,000 µS/cm = 2.0 mS/cm = 1000 ppm on .50 factor scale
2,000 µS/cm = 2.0 mS/cm = 1400 ppm on 442 scale or .70 factor scale
Specifications
- Range: 0.0 - 10.0 mS/cm
- Resolution: 0.1 mS/cm
- Accuracy: ±2% F.S.
- Calibration: Manual, 1-point
- Set point: 1.0 to 5.0 mS/cm
- Alarm: Visual, active when reading is higher or lower than set point
- Temperature Compensation: Automatic, from 0 to 50°C | 32 to 122°F
- EC electrode: MA812/2 (included)
- Environment: 0 to 50°C / 32 to 122°F; max RH 95%
- Power Supply: 12 VDC adapter (included)
- Power Drivers: 115 VAC, 2A, 60Hz or 230 VAC, 1A, 50Hz
- Mounting kit (Included)
- Dimensions: 5.9 x 3.2 x 1.35 inches (148.5 x 82.5 x 32 mm)
- Weight: 6.3 ounces (180 g) (meter only)
