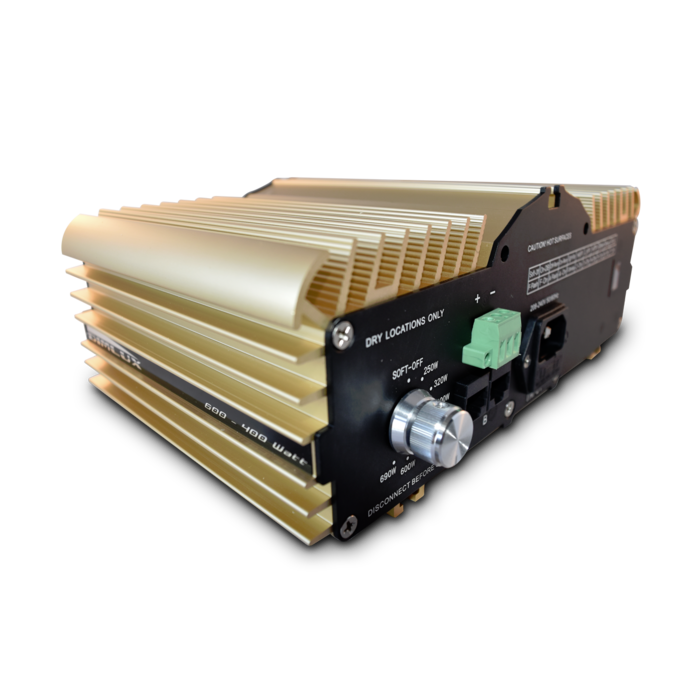

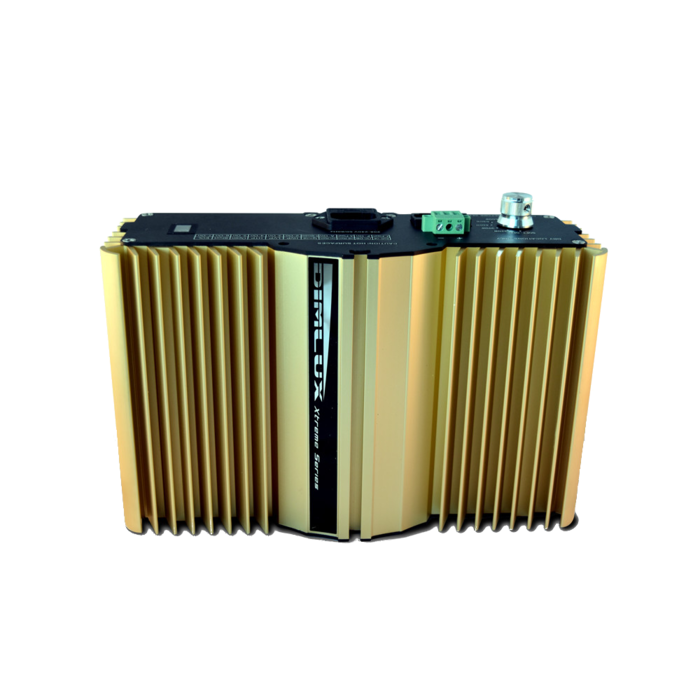

Dimlux Xtreme Series EVSA ~ Digital Ballast

Description

Dimlux Xtreme Series - The Most Silent System

With the Dimlux Xtreme Series ECG you have a digital ballast that is considered to be the quietest system with hardly any vibration or humming noises. With these ballasts there are no buzzing and/or rattling noises from the relay where this is often the case with other ballasts.

Normal or Dimlux System

The Dimlux ECGs can be used as a normal digital ballast in a normal system with relay and timer. If you use these ballasts in combination with the Maxi Controller then you will get the maximum performance and can make full use of all Dimlux's possibilities. The Dimlux Xtreme Series ECGs are supplied with a 0.6 metre interlink cable, if a longer cable is required this should be ordered separately.

Specifications

400-600 Watt

600 Watt EL UHF

Suitable for: 400 Watt & 600 Watt
Output: 250-690 Watt
Connection: 230V
Overdrive: 15% Overdrive with 600W lamps and 20% Overdrive with 400W lamps
Soft Start: Low inrush for use without Maxi Controller
Zero start: (no inrush) for use with Maxi Controller
Soft Dim: Yes
Dim Button: 7 dim levels and off mode. Can be switched on and off via the Maxi Controllers as well as stepless dimming
Ultra High Frequency: No
Diagnostic display: Yes
Including: 4m cable and plug

Suitable for: 600 Watt 400 Volt EL UHF
Output: 320-720W
Connection: 230V
Overdrive: 20%
Soft start: low inrush for use without Maxi Controller
Zero start: (no inrush) for use with the Maxi Controller
Soft Dim: Yes
Dim Button: 7 dim levels and off mode. Can be switched on and off via the Maxi Controller as well as stepless dimming
Ultra High Frequency: Yes
Diagnostic display: Yes
Including: 4m cable and plug

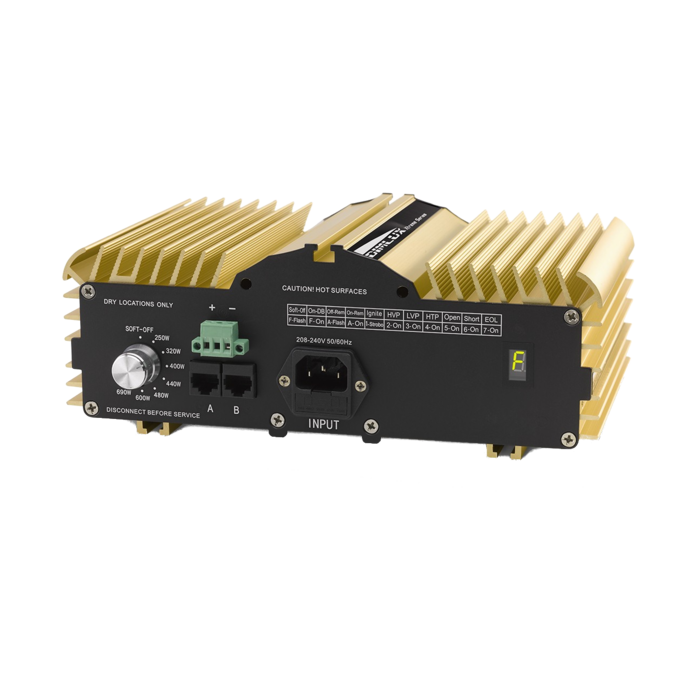

Dim Function

Soft Off
250 Watt
320 Watt
400 Watt
440 Watt Boost 10% @ 400 Watt
480 Watt Boost 20% @ 400 Watt
600 Watt
690 Watt Boost 15% @ 600 Watt

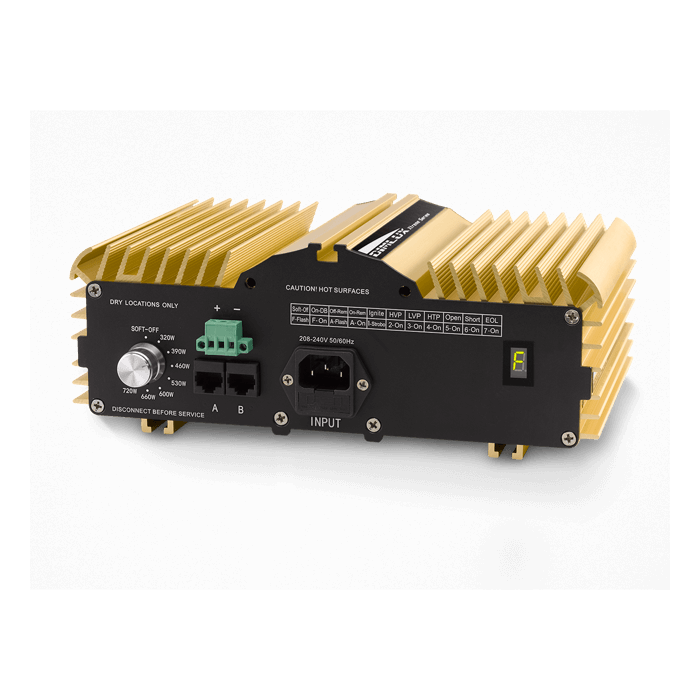

Dim Function

Soft Off
320 Watt
390 Watt
460 Watt
530 Watt
600 Watt
645 Watt Boost
720 Watt Boost 20%
