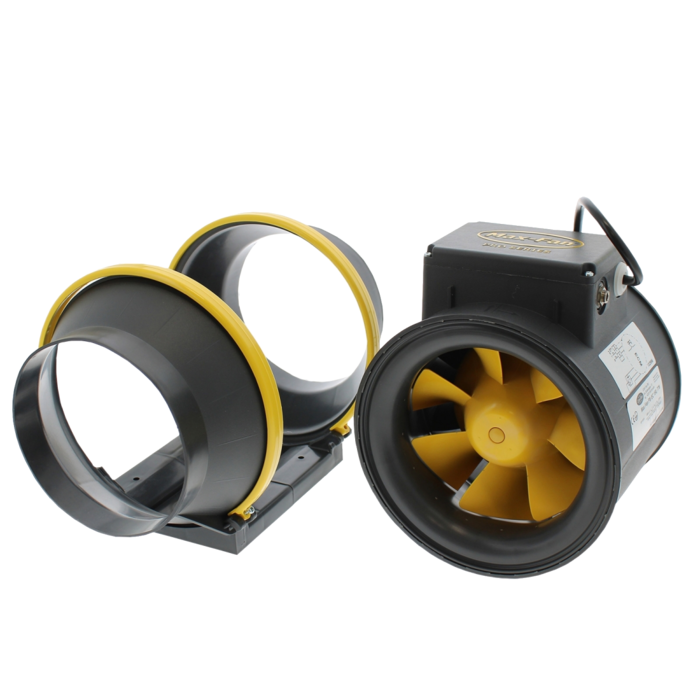

Can-Fan Max-Fan Pro EC ~ Tube Fan
Can-Fan Max-Fan Pro EC ~ Tube fan
With the Can-Fan Max-Fan Pro EC you have a 'mixed flow' fan with the highest aerodynamic efficiency and best energy consumption thanks to the new EC technology motor combined with the 3D rotor-stator system.

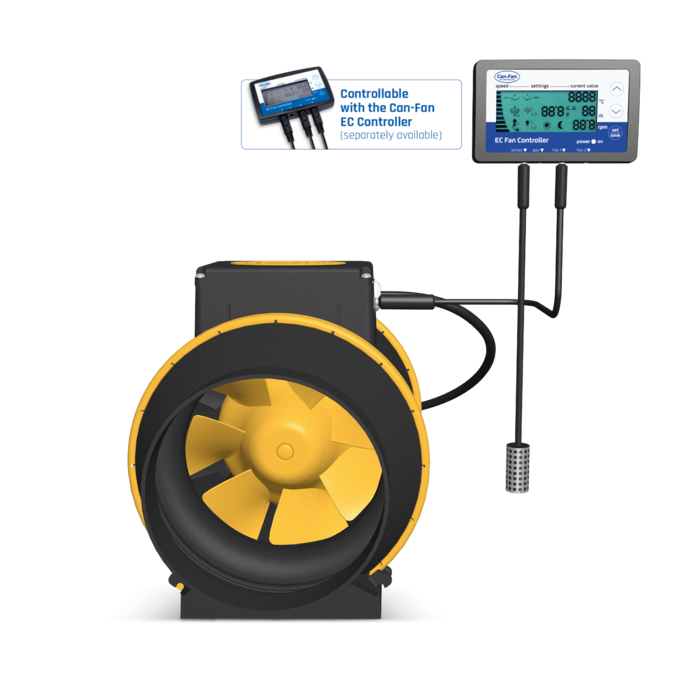

The Can-Fan Max-Fan Pro EC provides powerful but quiet operation, resulting in an even, turbulence-free airflow. These tube fans can be controlled with a Can-Fan EC controller, with a Can-Fan EC Controller you can connect and control up to 10 EC motor fans simultaneously.
The Can-Fan Max-Fan Pro EC is German-made and is very compact, user-friendly and easy to clean. In addition, the fans have integrated hangers that facilitate their installation.
- New EC technology motor
- Efficient and powerful
- Strong airflow while consuming less electricity
- Highest aerodynamic efficiency due to the three-dimensional shaped rotor and stator system

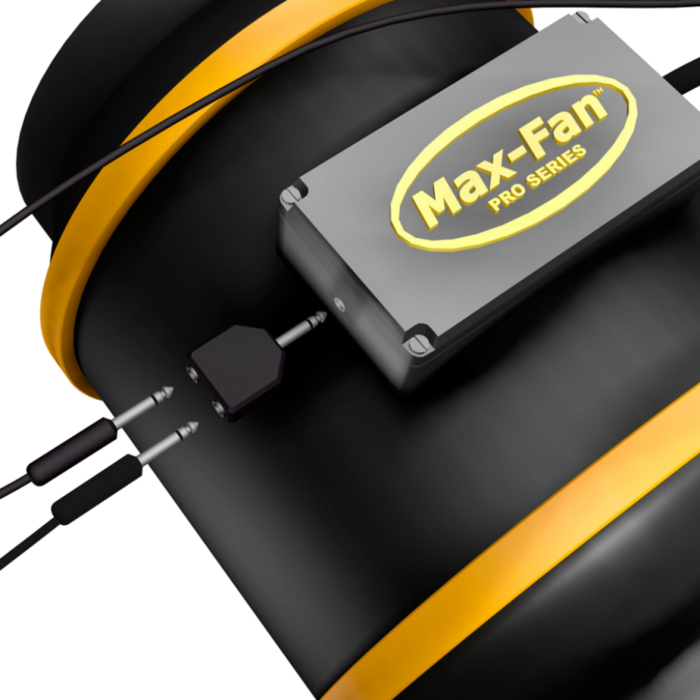

- Easy to use Jack Connection
What is the difference between an AC and an EC motor?
An AC motor is also known as an AC motor, AC motors use mains frequency to turn and an external frequency converter(controller) to determine speed. An EC motor is a brushless, permanent magnet motor with built-in electronics that control the torque and speed of the motor.
Technical Datasheet - Max-Fan Pro EC 150mm - 776m3
Technical Datasheet - Max-Fan Pro EC 160mm - 807m3
- Brand: CAN
- Article number: 41.070
- Max-fan Pro EC 150mm ~ 776m3: Max-fan Pro EC 150mm ~ 776m3
- Material: Plastic
- Weight: 2.4 kg
- Diameter Ø : 150 mm
- Capacity: 776 m3/h
- Current: 0.6 A
- Power: 67 Watts
- Max-fan Pro EC 160mm ~ 807m3: Max-fan Pro EC 160mm ~ 807m3
- Material: Plastic
- Weight: 2.6 kg
- Diameter Ø: 160 mm
- Capacity: 807 m3/h
- Current: 0.6 A
- Power: 73 Watts
- Max-fan Pro EC 200mm ~ 1301m3: Max-fan Pro EC 200mm ~ 1301m3
- Material: Plastic
- Weight: 3.2 kg
- Diameter Ø: 200 mm
- Capacity: 1301 m3/h
- Current: 1 A
- Power: 121 Watt
- Max-fan Pro EC 250mm ~ 2175m3: Max-fan Pro EC 250mm ~ 2175m3
- Material: Plastic
- Weight: 4.1 kg
- Diameter Ø: 250 mm
- Capacity: 2175 m3/h
- Current: 2.1 A
- Power: 304 Watts
