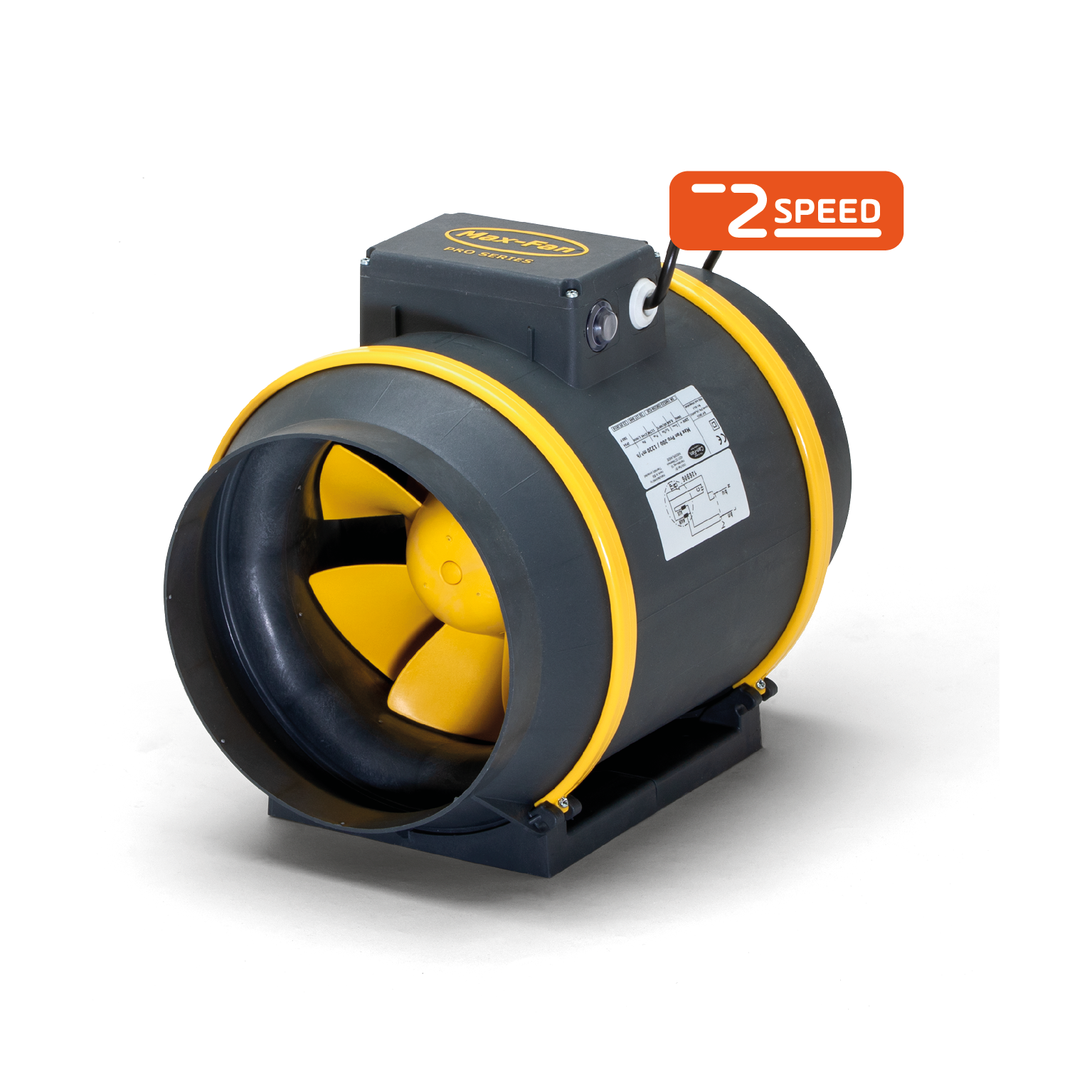

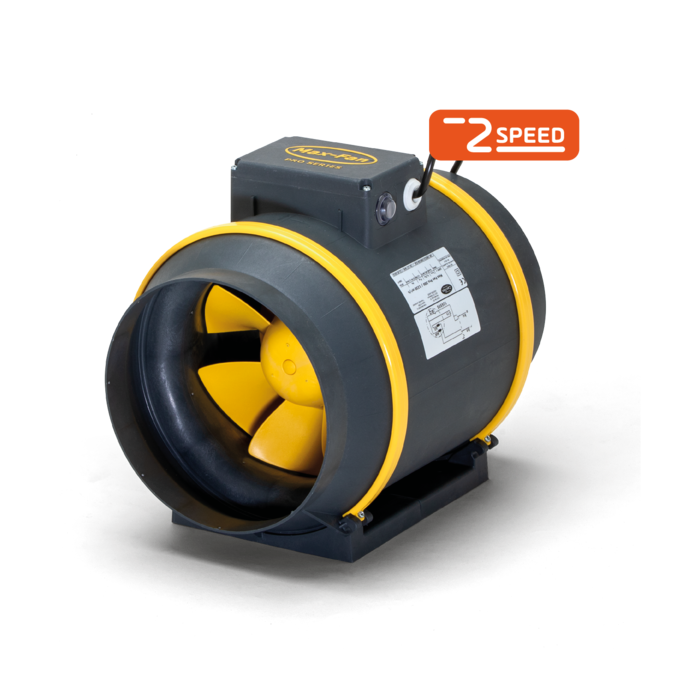

Can-Fan Max-Fan Pro AC - 2 Speed ~ Tube Fan
Can-Fan Max-Fan Pro AC - 2 Speed ~ Tube fan
With the Can-Fan Max-Fan Pro AC you have a tube fan developed with Can their patented 3D rotor-stator system, the design makes it easy to operate, compact and simple to install. This patented system makes this tube fan quieter and more efficient than most tube fans on the market.
About the installation, Can has thought carefully, the adapter for the ventilation duct is integrated into the mounting bracket. You therefore only need to mount the adapter and then secure the fan with 2 screws.
Thanks to the integrated speed switch you can control the air performance manually, this fan has 2 speed settings. The elegant and robust plastic housing combined with the convenient mounting bracket allows you to easily clean this tube fan by removing the brackets.
- New generation rotor-stator system
- Powerful airflow with integrated speed control
- Compact and easy to mount
- Rotor-stator uniform airflow
- Integrated switch with 2 speeds
- Elegant and robust plastic housing
- Easy to clean by removing the brackets
What is the difference between an AC and an EC motor?
An AC motor is also called an AC motor, AC motors use mains frequency to turn and an external frequency converter(controller) to determine the speed. An EC motor is a brushless, permanent magnet motor with built-in electronics that control the torque and speed of the motor.
Technical Datasheet - Max-Fan Pro AC 150mm - 600m3
Technical Datasheet - Max-Fan Pro AC 160mm - 615m3
- Brand: CAN
- Article number: 41.060
- Max-Fan Pro AC 150mm ~ 600m3: Max-Fan Pro AC 150mm ~ 600m3
- Material: Plastic
- Weight: 2.4 kg
- Diameter Ø : 150 mm
- Capacity: 600 m3/h
- Current: 0.3 A
- Power: 46 Watts
- Speeds: 470 / 600 m3
- Max-Fan Pro AC 160mm ~ 615m3: Max-Fan Pro AC 160mm ~ 615m3
- Material: Plastic
- Weight: 2.5 kg
- Diameter Ø: 160 mm
- Capacity: 615 m3/h
- Current: 0.3 A
- Power: 45 Watts
- Speeds: 496 / 615 m3
- Max-Fan Pro AC 200mm ~ 1218m3: Max-Fan Pro AC 200mm ~ 1218m3
- Material: Plastic
- Weight: 4 kg
- Diameter Ø: 200 mm
- Capacity: 1220 m3/h
- Current: 0.6 A
- Power: 177 Watts
- Speeds: 793 / 1220 m3
- Max-Fan Pro AC 250mm ~ 1660m3: Max-Fan Pro AC 250mm ~ 1660m3
- Material: Plastic
- Weight: 5.3 kg
- Diameter Ø: 250 mm
- Capacity: 1660 m3/h
- Current: 0.8 A
- Power: 136 Watts
- Speeds: 1470 / 1660 m3
