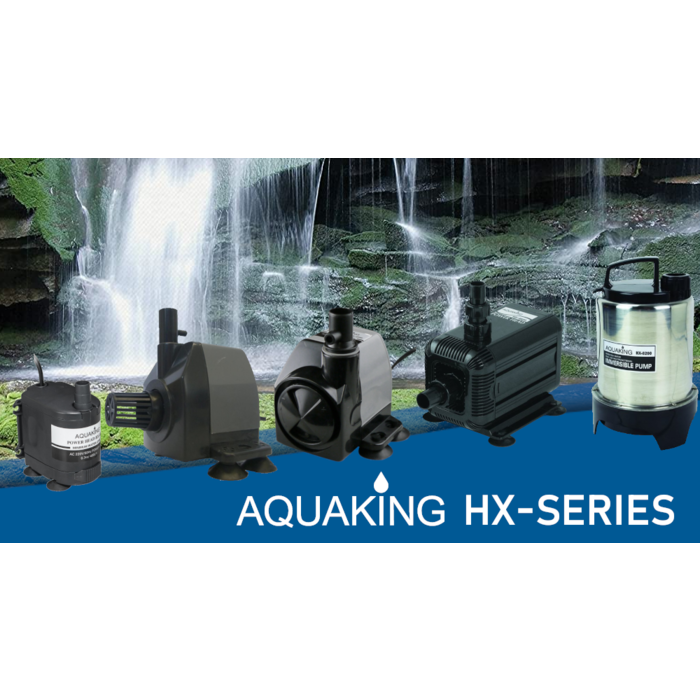

AquaKing HX Series - Circulation Pump

HX-1500

• Capacity: 300 liters per hour
• Pressure: 0.7mwk *
• Maximum lift: 0.7 meters
• Outlet diameter: Ø12 mm
• Power consumption: 5 watts
• Voltage: 220-240 volts 50/60 Hz
• Minimum water depth: 25 mm
• Dimensions: 63 x 73 x 83 mm

HX-2500

• Capacity: 1000 liters per hour
• Pressure: 1.6mwk*
• Maximum pump head: 1.6 metres
• Power Consumption: 22 watts
• Voltage: 220-240 volts 50/60 Hz
• Minimum water depth: 25 mm
• Dimensions: 140 x 102 x 110 mm

HX-4500

• Capacity: 2500 liters per hour
• Pressure: 3mwk*
• Maximum pump head: 2,8 meters
• Outlet diameter: Ø20mm
• Power consumption: 36 watts
• Voltage: 220-240 volts 50/60 Hz
• Minimum water depth: 25 mm
• Dimensions: 150 x 135 x 120 mm

HX-6510

• Capacity: 480 liters per hour
• Maximum lift: 1,2 meter
• Outlet diameter: Ø13mm
• Power Consumption: 10 watts
• Voltage: 220-240 Volts 50/60 Hz

HX-6520

• Capacity: 1000 liters per hour
• Maximum Head: 1.6 meters
• Outlet diameter: Ø15mm
• Power Consumption: 35 watts
• Voltage: 220-240 Volts 50/60 Hz

HX-6530

• Capacity: 1750 liters per hour
• Maximum Head: 2.3 meters
• Outlet diameter: Ø16mm
• Power Consumption: 50 Watts
• Voltage: 220-240 Volts 50/60 Hz

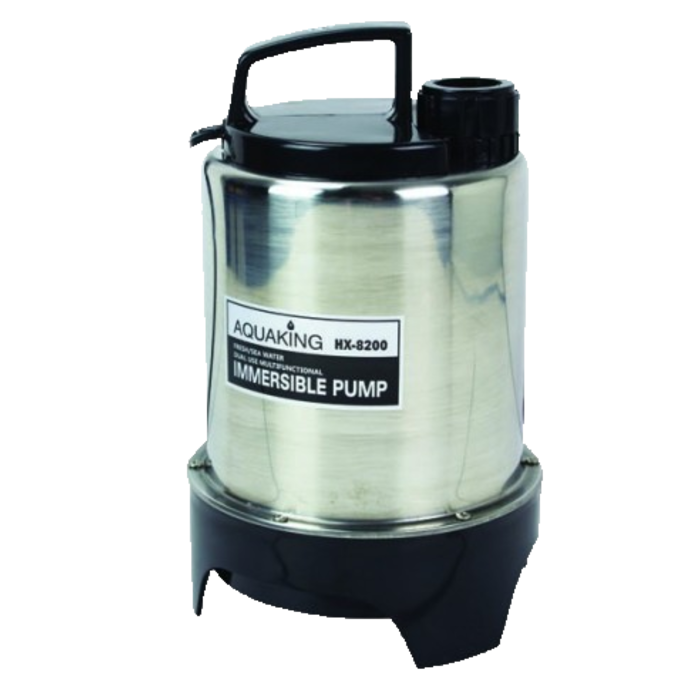

HX-8200

• Capacity: 2500 liters per hour;
• Pressure: 3.1 mwk*
• Maximum pump head: 3.2 m;
• Power consumption: 100 watts;
• Minimum water depth: 25 mm;
• Dimensions: 145 mm x 145 mm x 245 mm;
• Connection: 20-25 mm
• Connects to a power supply computer
• Supplied with 10 meter cable
